KST-804

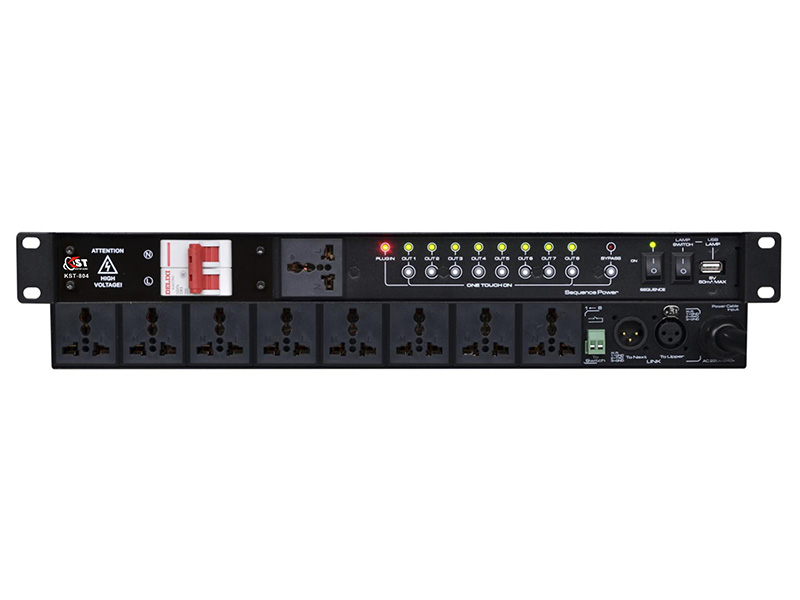

Timing device: KST-804
Air switch input interface to facilitate the power of access and control to meet the inductive load, resistance to surge impact;
30A high current control relay output, multi-purpose socket;
Standard USB interface lighting auxiliary lighting configuration;
Standby, running, all bypass, single channel bypass full function;
Using SMT, AI, ICT automatic production and testing technology to ensure the standardization of production and product consistency;
enter:
Power Condition Single Phase 3 Line
Power Line Access Port Mode Single Phase Two Knife Dynamic Air Switch
Connecting device DZ47 C63
Maximum connection diameter 50mm2
Grounding terminal connection ear
The following are the same as the "
Output:
Number of timing channels 8 channels
Can output channel number 8 channels
Power Condition Single Phase 3 Line
Connect the device type compatible with the American standard European standard socket
Non-sequential output auxiliary channel universal socket
The following are the same as the "
Other parameters:
Input maximum current capacity 63A (AC220V)
Maximum output current per channel capacity of 30A / 60S or 10Arms
USB lamp holder maximum output voltage / current 5V / 50mA
The following are the same as the "
Function and use:
Front panel indication Function Power On, Standby, Run, All Bypass, Separate Channel Bypass
Front panel use function timing power switch, USB lamp power switch and interface, all bypass selection, separate channel bypass selection, multi-function power outlet
Rear panel uses the function to access the power of the total input switch interface, timing power output socket, on-line input and output socket
The following are the same as the "
Protection function air switch overcurrent automatic circuit breaking function
The following are the same as the "
size and weight
Product Dimensions (W * D * H) 483 * 260 * 44.5 mm (1U)
Outer packing size (width * deep * high) 560 * 425 * 80 mm
Net weight: 5.2KG
Gross Weight: 5.6KG
The following are the same as the "
Power supply: Transformer AC220V ± 10% 50 ~ 60Hz (optional plus filter)
Power cord: 1.2 m GB 3 core 6 square cable
